This instrument is most affordable yet technologically advanced. - Patented Technology
WhatsApp, Signal, Telegram: (+ 91) 79 8484 8002
Sensegood Instruments offers a benchtop or table top yet portable color spectrophotometer.
The same instrument visible vis spectrophotometer works as a full spectrum handheld portable digital colorimeter, photo colorimeter, photoelectric colorimeter, color meter, color spectrometer, color analyzer instrument, color difference meter, color matching machine, whiteness meter tester, or color spectrum measurement instrument in general that assists you in optimizing the color quality & consistency of your product.
This industrial and laboratory spectrophotometer instrument works on a principle of true color LED beam reflectance spectrophotometry; and it comes at a most affordable price.
The world is color. We understand exactly why the color is important for you. Achieving right color requires first measuring it accurately. Ensure color quality and consistency of your product using Sensegood Spectrophotometer.
Sensegood Colorimeter Spectrophotometer is thoughtfully developed considering all the facilities that you desire, to assist you in optimizing the color quality of your products. We have this all in one color measurement instrument for you regardless of what you want to measure.
Sensegood portable digital photo colorimeter color spectrophotometer best in class features:
Worlds only contact as well as non-contact color measurement instrument Patented Proprietary Technology
Worlds one of the most affordable spectrophotometer with niche technology

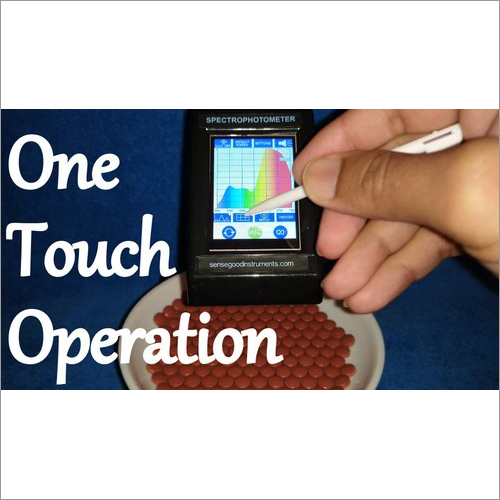

One touch operation: Just press GO to measure
Fast, Hassle free, No warm up time required
Easy operating system Color resistive touch TFT
Single screen compilation: All color computational data is kept at one place for ease of analysis: XYZ, Yxy, CIE L*a*b*, CIE L*C*ho, CIE L*u*v*, HunterLab, CCT color temperature, peak wavelength
Also displays: RGB, rgb, CMYK, Color Hex Code
It can capture, evaluate and communicate the color of any sample; be it solid, liquid, powder or paste
Versatile: Same instrument can be configured to work as benchtop/table top, handheld/portable and online/in-process color measuring instrument
Settable color tolerance and Alarm (audible and visible) indications
Color difference measurement: Color matching instrument: Evaluates color match percentage between standard reference and production samples
Displays Match% value in green (Pass indication) if it is greater than the set Alarm Limit
Displays Match% value in red (Fail indication) and plays audible alarm if it is less than the set Alarm Limit
Indication of whether the sample is Lighter/Duller, Redder/Greener, and Yellower/Bluer than the reference
Reference color data can be saved in the memory for future color comparison with the sample
Graphical representation of spectra for 400nm to 700nm with 1nm resolution
Sensegood Spectrophotometer has rotating sample platform and a large field of view. This along with the averaging mode active; ensures best reproducibility in measurements even in non-uniform samples.
Auto repeat measurement mode. Along with this mode, establish color tolerances and evaluate color match percentage
Inbuilt library of color indices: Various whiteness indices (WI), Yellowness index (YI), Baking contrast unit (BCU), Tomato color index (TCI), Ripening index a*/b* and b*/a*, Citrus color index (CCI), Citrus number (CN), Citrus red index (CR), SCAA Agtron number coffee roast color index
No field maintenance costs: Scratch proof sensor optical assembly.
Compact in design and comparatively light in weight
General specifications: Digital Portable photoelectric colorimeter vis / visible spectrophotometer:
Spectral display range: 400 700nm
Spectral display resolution: 1 nm throughout the spectra
Average inter-measurement agreement: ~0.2 E* CIELab
Operating principle: Reflection visible spectrophotometry
Color space: CIELab, HunterLab, CIELCH, CIELuv
Simulated illuminants: A,C,D65,D50,D55,D75
Simulated observers: 2,10
Other supported color attributes: Peak wavelength, color temperature CCT, XYZ, Yxy, RGB, rgb, CMYK, Hex Color Code
Color difference: DE*Lab,DL*,Da*,Db*,Color Match%
Illumination source: Complementary compensating 98+ CRI true color full spectrum LEDs: Typically 22 times long life than any other bulb
Measurement duration: Without averaging: < 0.5 second (motor off)
Large contact measurement probing area: 28 mm
Warm up time: Not required, quick start operation
Meter type: Spectrophotometer, Colorimeter, Whiteness meter, Color Analyzer, Color Difference Meter
Sensor: Multi-spectral sensor array
Auto measurement mode: Instrument auto wakes up for measurement at user selectable repeat interval
User selectable repeat interval: 30/60/120 seconds
Rotating platform speed: 15RPM
Color display: 69mm resistive touch TFT
Software: Computer interface utility SensegoodSmart
Interface: Wired communication using USB interface
Using the provided computer software, customer color reference data can be saved (.pdf, .jpg, .sego proprietary color data file) to computer for record keeping. One can print, share, import and export (instrument <-> computer) color measurement data which further enables data portability and global color management.
General specifications contd...
Low power consumption: 0.8 Watts average. 8hrs a day, 6days a week 48+hr of operation using 10Ah power bank.
Battery: Not supported. It works with: 5V adapter or power bank or computers USB port.
Niche electronics: Over voltage protection, over current protection, smart fuse technology
Factory reset: Provision for software as well as hardware reset is available
EMI: Extremely suppressed Electromagnetic Interference (EMI). Strongest frequency component is 80dB down
Operating Humidity Range: 0% to 85% (non-condensing)
Operating Temperature Range: 0-4032-104)
Storage Temperature Range: -20-50-4-122)
Material: ABS engineering plastic, polyamide technopolymer and steel
Shipping dimensions & weight: 30 cm x 22 cm x 10 cm, 2 Kg
Warranty: 1 Year
Packing list: Package includes 5V adapter, data cable, 4inch and 6inch sample trays along with all the required accessories.

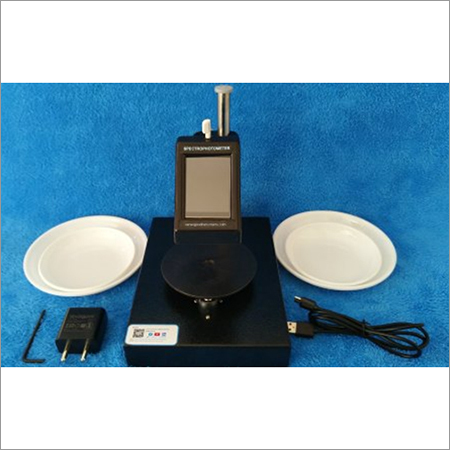

Photo displays an instrument along with provided accessories.
Further it is provided with SensegoodSmart utility - A computer interface software, downloadable from Sensegood Instruments website. It is a complete color management solution with all the facilities that you could ask for.
Sensegood Spectrophotometer/ Colorimeter is standardized:
Supports: Commission Internationale de l'clairage CIE1931, CIE1964 and CIE1976.
Supports: Agtron number which is standardized by SCAA (Specialty Coffee Association of America).
Supports: Citrus scores and other color indices standardized by USDA and USFDA.
Follows guidelines: Instrumental Color Measurement by American Association of Textile Chemists and Colorists (AATCC).
Industries that are using our Colorimeters / Spectrophotometers:
Color measurement in: Food processing and agriculture products
Bio-pharmaceutical industries: Color measurement and consistency control in pharmaceuticals; pills, liquid drugs, APIs, powders, drugs and medicines
Plastics: Color measurement and quality-consistency control in extruded and molded plastic products, plaques, and granules
Chemicals: Color measurement and analysis in chemicals, pigments, synthetic rubber, resins, salts, fertilizers, pesticides, soaps, toothpastes, and detergents
Paper: Color measurement and quality control in pulp, paper and packaging industry
Color measurement and consistency analysis in Rubber and Leather industry
Textile: Color measurement and management in textile industry
Color measurement and management in leather and footwear industry
Cosmetics: Color measurement and quality-consistency control in beauty and cosmetics products
Paints: Color measurement and quality-consistency control paints, coatings, pigments, and powders
Ceramics: Color measurement and quality-consistency control in ceramics, tiles, slurry, glaze, potteries, and archaeological ceramics
Automotives: color management in automobile industry
Concrete: Color measurement and quality control in cement, concrete and building materials
Wood: Color measurement in wood products
Color management & control in architecture & the effect of color on human psychology
Measure whiteness in Maida, Flour, Pulp Paper Packaging industry, Sago pearls, Ceramics, Textiles, Linen, pharmaceutical Powders, APIs, chemicals, Rice, Salt, Sugar, Dairy milk powder, etc. Similarly measure Yellowness of paper, rice, etc.
Researchers: Sensegood spectrophotometer for researchers, universities, laboratories and hobbyists
We ship worldwide with DHL Express or equivalent for fast delivery. Please provide nearest major city address if your address falls in remote area. The item will be shipped directly from the factory! We will try our best to give our customers a good and pleasant purchasing experience! We welcome your any-time order!
Some of our dispatches:
We help your business achieve the highest level of color integrity so your product - and your customer's product - comes out ahead. PURCHASE Sensegood Instruments and be technology driven company NOW!
Thank you for your interest in Sensegood Spectrophotometer! Good Day from Sensegood Instruments!
